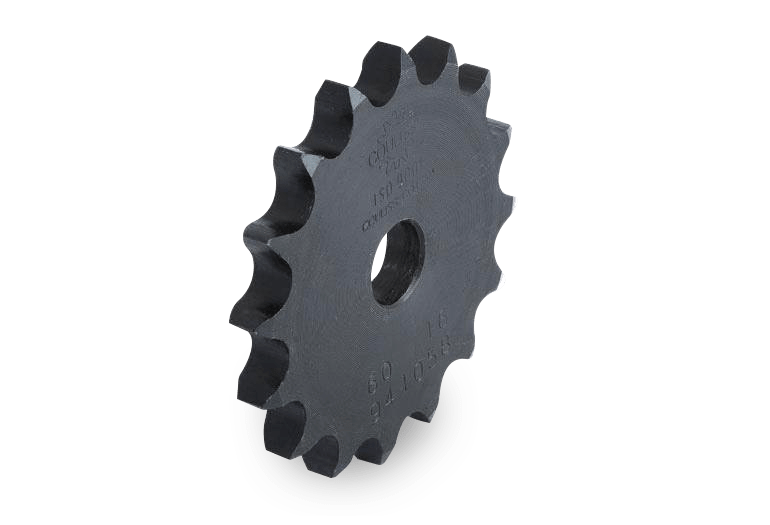

چرخ زنجیر مدل 05B
Pitch P 8.0 mm
Roller Diameter Dr 5.0 mm
Tooth Width (Single) B1 2.8 mm
Tooth Width (Duplex) B2 2.7 mm
Tooth Width (Triplex) B3 2.7 mm
Transverse Pitch of Strands Pt 5.64 mm
Tooth Side Relief ch 0.5 mm
Tooth Side Relief high h 4.0 mm
Length through (Single) L1 =d+B1
Length through (Duplex) L2 =d+pt+B2
Length through (Triplex) L3 =d+(2xpt)+B3
Dk 0~50 50~150 150~250 250~350 350~450 450~
Tolerance +0.1/-0.1 +0.2/-0.2 +0.2/-0.3 +0.3/-0.4 +0.3/-0.4 +0.3/-0.6



Product Code Z d Df CD Dk Dg Db/L
S ISO 05B-010 10 30.8 24.5 24.5 34.4 19 8
S ISO 05B-011 11 33.8 27.5 27.1 37.5 23 8
S ISO 05B-012 12 36.8 30.5 30.5 40.5 26 8
S ISO 05B-013 13 39.8 33.5 33.2 43.6 29 8
S ISO 05B-014 14 42.8 36.5 36.5 46.6 32 8
S ISO 05B-015 15 45.8 39.5 39.2 49.7 35 8
S ISO 05B-016 16 48.8 42.5 42.5 52.7 38 8
S ISO 05B-017 17 51.8 45.5 45.3 55.8 41 8
S ISO 05B-018 18 54.9 48.5 48.5 58.8 44 8
S ISO 05B-019 19 57.9 51.5 51.3 61.8 47 8
S ISO 05B-020 20 60.9 54.5 54.5 64.9 50 8
S ISO 05B-021 21 63.9 57.6 57.4 67.9 53 8
S ISO 05B-022 22 66.9 60.6 60.6 70.9 56 8
S ISO 05B-023 23 70 63.6 63.4 74 59 8
S ISO 05B-024 24 73 66.6 66.6 77 62 8
S ISO 05B-025 25 76 69.6 69.5 80.1 66 8
S ISO 05B-026 26 79 72.7 72.7 83.1 69 10
S ISO 05B-027 27 82 75.7 75.6 86.1 72 10
S ISO 05B-028 28 85.1 78.7 78.7 89.2 75 10
S ISO 05B-029 29 88.1 81.7 81.6 92.2 78 10
S ISO 05B-030 30 91.1 84.8 84.8 95.2 81 10
S ISO 05B-031 31 94.2 87.8 87.7 98.3 84 10
S ISO 05B-032 32 97.2 90.8 90.8 101.3 87 10
S ISO 05B-033 33 100.2 93.9 93.7 104.3 90 10
S ISO 05B-034 34 103.2 96.9 96.9 107.4 93 10
S ISO 05B-035 35 106.3 99.9 99.8 110.4 96 10
S ISO 05B-036 36 109.3 102.9 102.9 113.4 99 10
S ISO 05B-037 37 112.3 106 105.9 116.5 102 10
S ISO 05B-038 38 115.3 109 109 119.5 105 10
S ISO 05B-039 39 118.4 112 111.9 122.5 108 10
S ISO 05B-040 40 121.4 115.1 115.1 125.6 111 10
S ISO 05B-041 41 124.4 118.1 118 128.6 114 12
S ISO 05B-042 42 127.5 121.1 121.1 131.6 117 12
S ISO 05B-043 43 130.5 124.1 124.1 134.7 120 12
S ISO 05B-044 44 133.5 127.2 127.2 137.7 123 12
S ISO 05B-045 45 136.5 130.2 130.1 140.7 126 12
S ISO 05B-046 46 139.6 133.2 133.2 143.8 129 12
S ISO 05B-047 47 142.6 136.3 136.2 146.8 132 12
S ISO 05B-048 48 145.6 139.3 139.3 149.8 135 12
S ISO 05B-049 49 148.7 142.3 142.2 152.9 139 12
S ISO 05B-050 50 151.7 145.3 145.3 155.9 142 12
S ISO 05B-051 51 154.7 148.4 148.3 158.9 145 12
S ISO 05B-052 52 157.8 151.4 151.4 162 148 12
S ISO 05B-053 53 160.8 154.4 154.4 165 151 12
S ISO 05B-054 54 163.8 157.5 157.5 168 154 15
S ISO 05B-055 55 166.8 160.5 160.4 171.1 157 15
S ISO 05B-056 56 169.9 163.5 163.5 174.1 160 15
S ISO 05B-057 57 172.9 166.6 166.5 177.1 163 15
S ISO 05B-058 58 175.9 169.6 169.6 180.2 166 15
S ISO 05B-059 59 179 172.6 172.6 183.2 169 15
S ISO 05B-060 60 182 175.6 175.6 186.2 172 15
S ISO 05B-061 61 185 178.7 178.6 189.3 175 15
S ISO 05B-062 62 188.1 181.7 181.7 192.3 178 15
S ISO 05B-063 63 191.1 184.7 184.7 195.3 181 15
S ISO 05B-064 64 194.1 187.8 187.8 198.4 184 15
S ISO 05B-065 65 197.2 190.8 190.7 201.4 187 15
S ISO 05B-066 66 200.2 193.8 193.8 204.4 190 15
S ISO 05B-067 67 203.2 196.9 196.8 207.5 193 15
S ISO 05B-068 68 206.2 199.9 199.9 210.5 196 15
S ISO 05B-069 69 209.3 202.9 202.9 213.5 199 15
S ISO 05B-070 70 212.3 206 206 216.6 202 15
S ISO 05B-071 71 215.3 209 208.9 219.6 205 15
S ISO 05B-072 72 218.4 212 212 222.6 208 15
S ISO 05B-073 73 221.4 215 215 225.7 211 15
S ISO 05B-074 74 224.4 218.1 218.1 228.7 214 15
S ISO 05B-075 75 227.5 221.1 221.1 231.7 217 15
S ISO 05B-076 76 230.5 224.1 224.1 234.8 220 15
S ISO 05B-077 77 233.5 227.2 227.1 237.8 223 15
S ISO 05B-078 78 236.6 230.2 230.2 240.8 227 15
S ISO 05B-079 79 239.6 233.2 233.2 243.9 230 15
S ISO 05B-080 80 242.6 236.3 236.3 246.9 233 15
S ISO 05B-081 81 245.6 239.3 239.2 249.9 236 15
S ISO 05B-082 82 248.7 242.3 242.3 252.9 239 15
S ISO 05B-083 83 251.7 245.4 245.3 256 242 15
S ISO 05B-084 84 254.7 248.4 248.4 259 245 20
S ISO 05B-085 85 257.8 251.4 251.4 262 248 20
S ISO 05B-086 86 260.8 254.5 254.5 265.1 251 20
S ISO 05B-087 87 263.8 257.5 257.4 268.1 254 20
S ISO 05B-088 88 266.9 260.5 260.5 271.1 257 20
S ISO 05B-089 89 269.9 263.5 263.5 274.2 260 20
S ISO 05B-090 90 272.9 266.6 266.6 277.2 263 20
S ISO 05B-091 91 276 269.6 269.6 280.2 266 20
S ISO 05B-092 92 279 272.6 272.6 283.3 269 20
S ISO 05B-093 93 282 275.7 275.6 286.3 272 20
S ISO 05B-094 94 285.1 278.7 278.7 289.3 275 20
S ISO 05B-095 95 288.1 281.7 281.7 292.4 278 20
S ISO 05B-096 96 291.1 284.8 284.8 295.4 281 20
S ISO 05B-097 97 294.1 287.8 287.8 298.4 284 20
S ISO 05B-098 98 297.2 290.8 290.8 301.5 287 20
S ISO 05B-099 99 300.2 293.9 293.8 304.5 290 20
S ISO 05B-100 100 303.2 296.9 296.9 307.5 293 20
S ISO 05B-101 101 306.3 299.9 299.9 310.6 296 20
S ISO 05B-102 102 309.3 303 303 313.6 299 20
S ISO 05B-103 103 312.3 306 305.9 316.6 302 20
S ISO 05B-104 104 315.4 309 309 319.7 305 20
S ISO 05B-105 105 318.4 312 312 322.7 308 20
S ISO 05B-106 106 321.4 315.1 315.1 325.7 311 20
S ISO 05B-107 107 324.5 318.1 318.1 328.8 314 20
S ISO 05B-108 108 327.5 321.1 321.1 331.8 318 20
S ISO 05B-109 109 330.5 324.2 324.1 334.8 321 20
S ISO 05B-110 110 333.6 327.2 327.2 337.9 324 20
S ISO 05B-111 111 336.6 330.2 330.2 340.9 327 20
S ISO 05B-112 112 339.6 333.3 333.3 343.9 330 20
S ISO 05B-113 113 342.6 336.3 336.3 346.9 333 20
S ISO 05B-114 114 345.7 339.3 339.3 350 336 20
S ISO 05B-115 115 348.7 342.4 342.3 353 339 20
S ISO 05B-116 116 351.7 345.4 345.4 356 342 20
S ISO 05B-117 117 354.8 348.4 348.4 359.1 345 20
S ISO 05B-118 118 357.8 351.5 351.5 362.1 348 20
S ISO 05B-119 119 360.8 354.5 354.5 365.1 351 20
S ISO 05B-120 120 363.9 357.5 357.5 368.2 354 20
S ISO 05B-121 121 366.9 360.6 360.5 371.2 357 20
S ISO 05B-122 122 369.9 363.6 363.6 374.2 360 20
S ISO 05B-123 123 373 366.6 366.6 377.3 363 20
S ISO 05B-124 124 376 369.6 369.6 380.3 366 20
S ISO 05B-125 125 379 372.7 372.6 383.3 369 20
S ISO 05B-126 126 382.1 375.7 375.7 386.4 372 20
S ISO 05B-127 127 385.1 378.7 378.7 389.4 375 20
S ISO 05B-128 128 388.1 381.8 381.8 392.4 378 20
S ISO 05B-129 129 391.2 384.8 384.8 395.5 381 20
S ISO 05B-130 130 394.2 387.8 387.8 398.5 384 20
S ISO 05B-131 131 397.2 390.9 390.8 401.5 387 20
S ISO 05B-132 132 400.2 393.9 393.9 404.6 390 20
S ISO 05B-133 133 403.3 396.9 396.9 407.6 393 20
S ISO 05B-134 134 406.3 400 400 410.6 396 20
S ISO 05B-135 135 409.3 403 403 413.7 399 20
S ISO 05B-136 136 412.4 406 406 416.7 402 20
S ISO 05B-137 137 415.4 409.1 409 419.7 405 20
S ISO 05B-138 138 418.4 412.1 412.1 422.7 408 20
S ISO 05B-139 139 421.5 415.1 415.1 425.8 412 20
S ISO 05B-140 140 424.5 418.2 418.2 428.8 415 20
S ISO 05B-141 141 427.5 421.2 421.2 431.8 418 20
S ISO 05B-142 142 430.6 424.2 424.2 434.9 421 20
S ISO 05B-143 143 433.6 427.2 427.2 437.9 424 20
S ISO 05B-144 144 436.6 430.3 430.3 440.9 427 20
S ISO 05B-145 145 439.7 433.3 433.3 444 430 20
S ISO 05B-146 146 442.7 436.3 436.3 447 433 20
S ISO 05B-147 147 445.7 439.4 439.3 450 436 20
S ISO 05B-148 148 448.8 442.4 442.4 453.1 439 20
S ISO 05B-149 149 451.8 445.4 445.4 456.1 442 20
S ISO 05B-150 150 454.8 448.5 448.5 459.1 445 20
